Primary and Foreign Key in SQL

Primary and Foreign Key in SQL

Introduction

A primary key is a table constraint that can be applied on the table to create a primary key on fields. Primary keys uniquely identify each record in a table. Each record in the table contains a unique & non-null value. A table can have only one primary key in a table, the primary key can be created with single or multiple fields.

A foreign key is a table constraint that can be applied on a table to create foreign keys for fields. A foreign key is a key that can be used to associate two tables. A foreign key can be a combination of single or multiple fields in a table that refers to primary keys in another table. A table containing the foreign key is referred to as a child table & the table which holds the candidate key is referred to as the parent table.

Primary and Foreign Key

The syntax for creating – Primary key  in newly created table

Create table <table name>(
Field <type> Primary key
.
.
Fields
)

The syntax for creating – Primary key  in existing table

ALTER TABLE <Table-Name> ADD PRIMARY KEY (Field);

The syntax for creating – Foreign Key in the newly created table

Create Table <Table name>(
Fields,
.
.
Field <type> References <Table name of primary key holder>(<Primary key field>)
)

The syntax for creating – Foreign Key in existing table

ALTER TABLE <Table-Name>
ADD CONSTRAINT <Constraint-Name> FOREIGN KEY (<Field-Name>) REFERENCES <Parent-Table>
(<Field- Name>)

To understand primary & foreign key concept in depth with the following example :

Creation of primary key in the new table :

“Student” table :

idnameclassAge
1samirFYBA25
2ankitFYSC25
3kashishSYBA27
4rekhaTYBA28

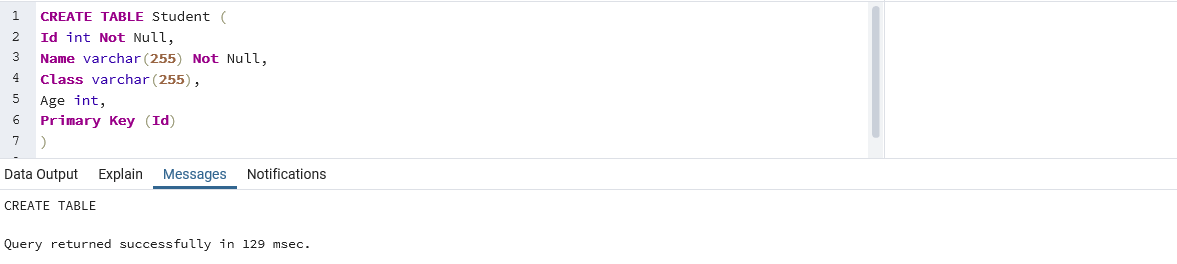

CREATE TABLE Student (
Id int Not Null,
Name varchar(255) Not Null,
Class varchar(255),
Age int,
Primary Key (Id)
)

Output :

Primary Key Output

In the above example,

“Id” column in the “Student” table is the primary key in the “Student” table.

Creation of primary key in the existing table:

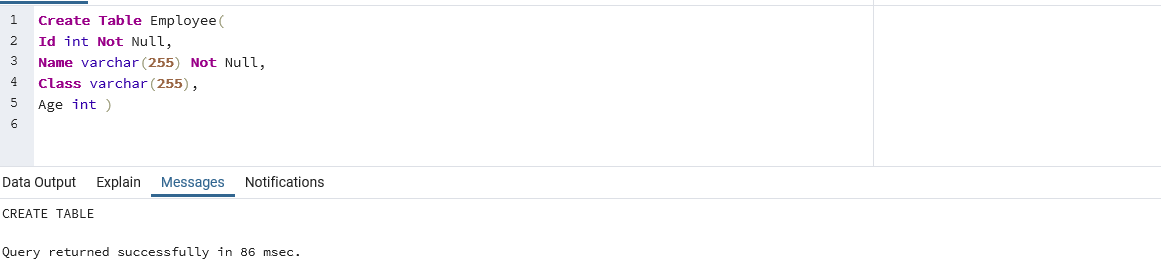

Before creating a foreign key, we will create a table with the name “Employee” as follows :

Create Table Employee(
Id int Not Null,
Name varchar(255) Not Null,
Class varchar(255),
Age int )

Primary Key Existing Table

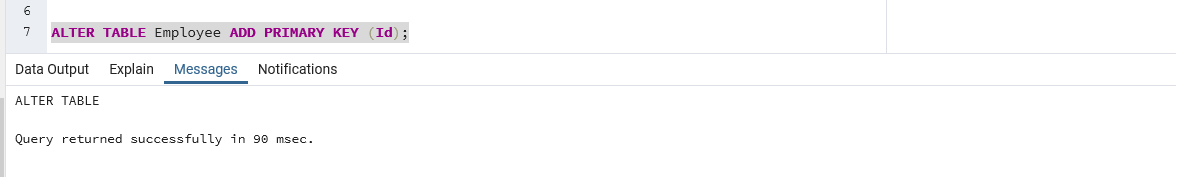

Here we have created the “Employee” table, now we are going to add a primary key to the table “Employee” by altering the table .

ALTER TABLE Employee ADD PRIMARY KEY (Id);

Alter Employee Primary id

After running above command, we have successfully created the Primary key field “Id” in “Employee” table

“Course Schedule” table:

sididweekdayTime
X0012Mon to Wed8 AM to 9 AM
X0021Wed to Sat12 PM to 1 PM
X0034Fri to Dat3 PM to 4 PM
X0043Mon to Sun5 PM to 6 PM

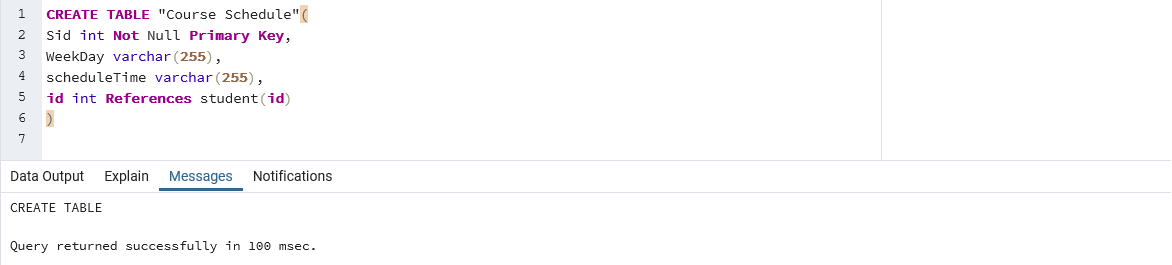

Creation of foreign key in the new table:

CREATE TABLE "Course Schedule"(
Sid int Not Null Primary Key,
WeekDay varchar(255),
scheduleTime varchar(255),
id int References student(id)
)

Create Foreign KeyIn the above example,
“id” column in the “Course Schedule” table is a foreign key in the “Course Schedule” table.

Creation of foreign key in the existing table:

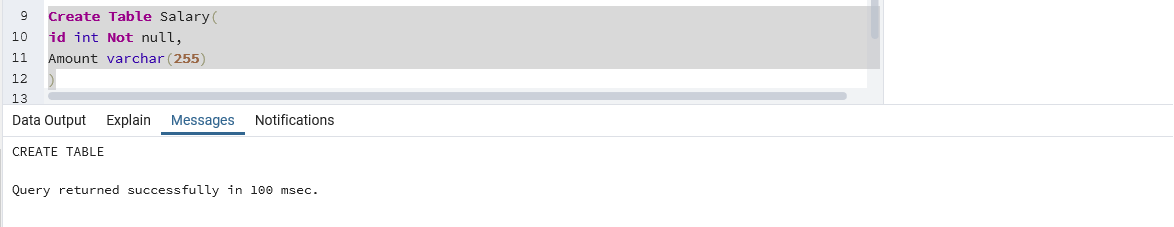

Before adding the foreign key constraint, we will create a table with named “Salary ” with the following commands:

Create Table Salary(
id int Not null,
Amount varchar(255)
)

Create Foreign Key Existing Table

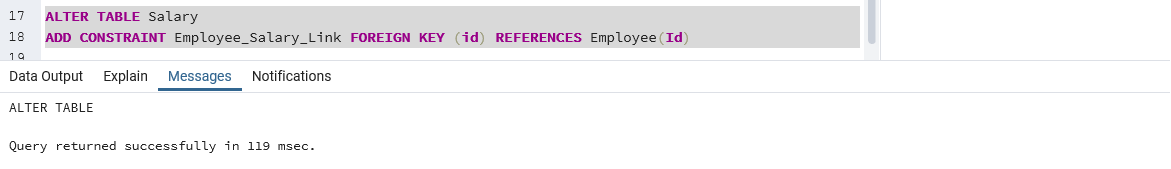

Here we have created a “Salary” table, now we are creating a foreign key “id” which will refer the primary key “Id” of parent table called “Employee”. We are declaring the “Employee_Salary_Link” constraint to create a foreign key (id) in the “Salary” table.

Employee Salary Table
